NPA1800 and NPT1800 Fully Automatic Shrink Machine | Nadi Pack
NPA1800 and NPT1800 are L-bar sealers and shrink machine combo perfect for high-volume production lines.
NPA1800-NPT1800 is a fully automatic L type sealing and cutting shrink wrapping machine including heat shrink tunnel which can feed products, seal and cut film and shrink film bag automatically. It is widely used in food, pharmaceutical, toy, auto parts, cosmetics, printing, hardware, electrical appliances and other industry. See more details below.
NPA1800 and NPT1800 Fully Automatic Shrink Machine Review
NPA1800 and NPT1800 make a fully automatic sealer and shrink pack combination which is a perfect solution for high-volume production lines. These machines fit within your production line through a conveyor design and ensure a quick packaging cycle.
NPA1800 is an L-bar sealer that is equipped with an internal sensor for time-efficient automatic sealing. It passes the sealed product through to NPT1800 which uses a heat tunnel to shrink pack the product. The heat tunnel uses a digital thermostat to control the temperature and an inverter for regulating the conveyor speed.
This combination can go through 1500 to 1800 cycles per hour and is compatible with PVC and POF films as sealing material.
The machine fixes an organic safety glass cover with alarm function, so that the operator is safe. It can also be connected with the production line, which is no need additional operators.
NPA1800 Info
| Description | Details |
| Power supply | 220V 50/60Hz |
| Power | 2 -3 KW |
| Packing Size | (L+H)550mm (W+H)＜400mm(H)110mm |
| Sealing Size | (L)550×(W)450mm |
|
Packaging speed |
15～30pcs/min (Determined by product size) |
| Shrink film | POF & PVC film |
| Shrink film size | (W)≤530mm(D)≤250mm (weight)≤35KG |
| Sealing form | L type full closed |
| Dimension | (L)1900×(W)1000×(H)1600mm |
| N. weight | 280 KG |
NPT1800 Info
| Description | Details |
| Power supply | 380V 3ph 50/60 Hz |
| Power | 10KW |
| Conveyor load | 30KG |
| Conveyor speed | 1-15m/min |
| Tunnel size(W×H) | 400×300 mm |
| Dimension(L×W×H) | 1900×1000×1500mm |
| N. weight | 150 Kg |
NPA1800 and NPT1800 Fully Automatic Shrink Features

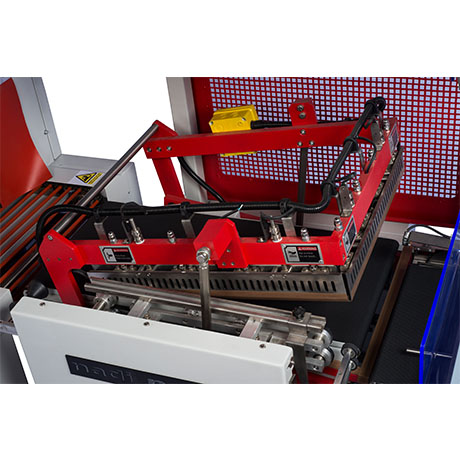

– Special durable alloyed sealing knife with anti-stick Teflon coats makes sealing strong and has better performance of heat conduction.

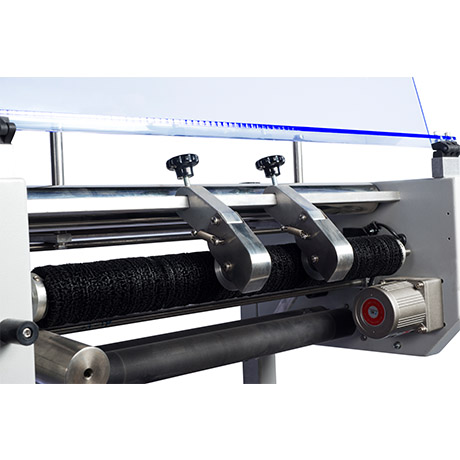

– Film perforating wheels can be adjusted or removed easily.

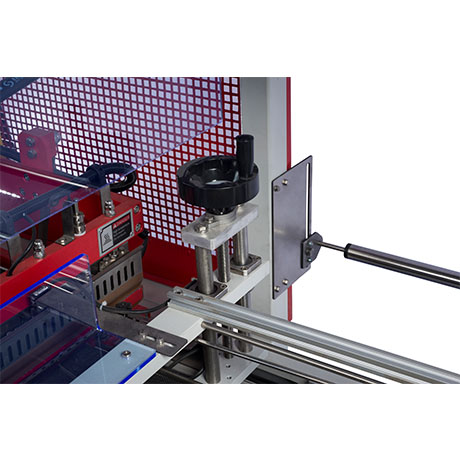

– Only adjust packing width and height by hand wheels without changing any molds and parts when packing size changes. Packing length can be detected by the sensor automatically.

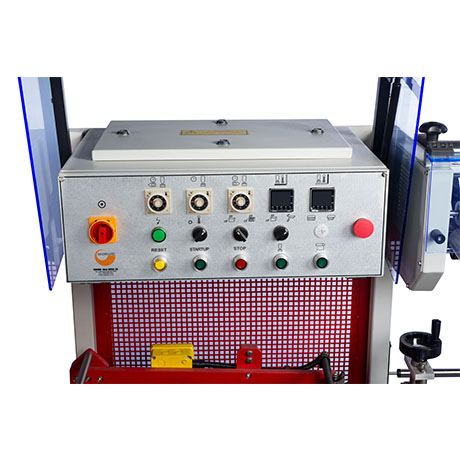

– Operate easily and conveniently by moveable control panel.
– Adopt Omron PLC, digital temperature controller, timer, relay, switch, and sensor.
– A pair of photoelectric switches in vertical for thin products.
– Optional sensor for transparent products.
– Collect wasted film automatically.
– Fully automatic L-bar sealer and shrink machine combo

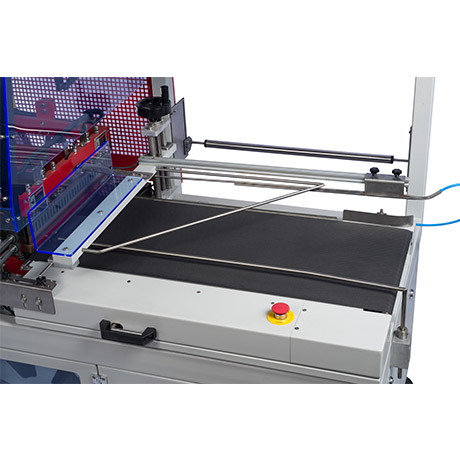

– In-line conveyor design
– Digital thermostat for tunnel temperature control
– Internal inverter for conveyor speed
– 1500 to 1800 cycles per hour
– Compatible with PVC and POF shrink films
– Electrostatic and impact-resistant finish
